Physical-Chemical, Media Filtration, Reverse Osmosis & Ion Exchange

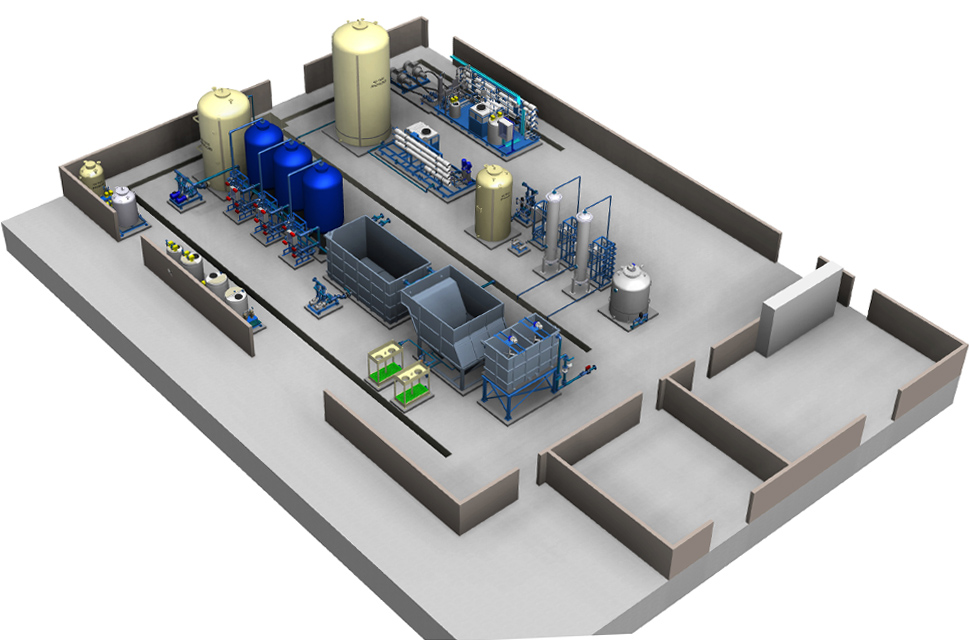

0-Layout
Location

Central America, 2012/2013 - Demineralization

Source

Sea water

Plant Configuration

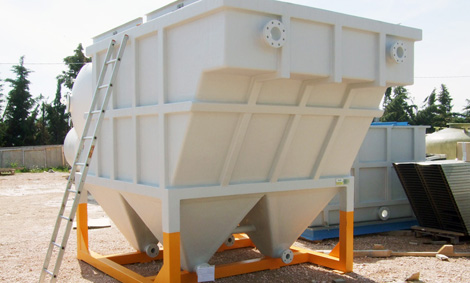

Clarification = 25 m³/h

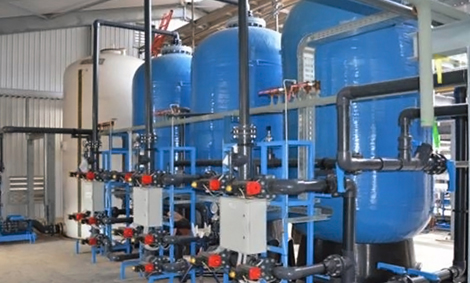

Multi-Media Filtration (V=20 m/h) = 25 m³/h
Cartridge micro-filtration = 25 m³/h

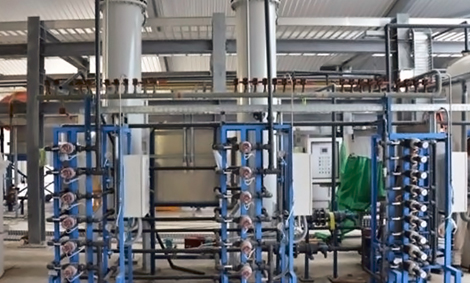

1° pass Reverse Osmosis = 10 m³/h
2° pass Reverse Osmosis = 6 m³/h
Polishing (30÷60 BV) = 5÷15 m³/h
